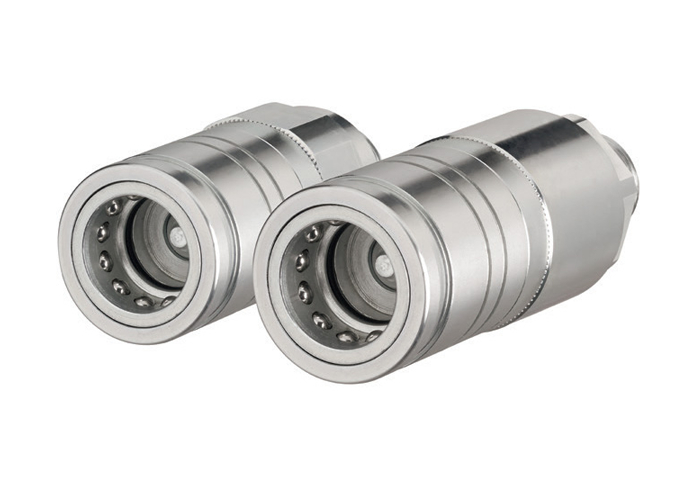

PPK ISO 7241-1 A Hydraulic Quick Coupler Cone Series - 250 Bar Steel Ball Locking for Heavy Machinery
PPK ISO 7241-1 A cone series hydraulic quick coupler adopts double-acting push-pull sleeve, poppet valve, and steel ball locking. Constructed with carbon steel or 316L stainless steel, it operates at -25℃ to +100℃, 250 bar. Ideal for agriculture, construction, oil drilling, and metallurgy. Offers BSP/NPT/SAE threads, NBR/FKM/EPDM seals.
| Nominal size | Working pressure | Rated flow(ISO) | Max flow rate | Burst pressure | Fluid spillage | |||
| PPK | ISO | Mpa | l/min | l/min | Male(Mpa) | Female(Mpa) | Coupled(Mpa) | cc |
| 12 | 12.5 | 25 | 45 | 90 | 110 | 190 | 2.7 | |
