Plaats van herkomst:
China
Merknaam:
carterberg
Certificering:
IATF16949
Modelnummer:
CB-SPS-10F
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+80℃ | NBR |
| 3/8" | 4000 | 6 | ||
| 1/2" | 4000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 3000 | 50 | ||
| 1-1/4" | 3000 | 88 | ||
| 1-1/2" | 2000 | 220 | ||
| 2" | 2000 | 224 |

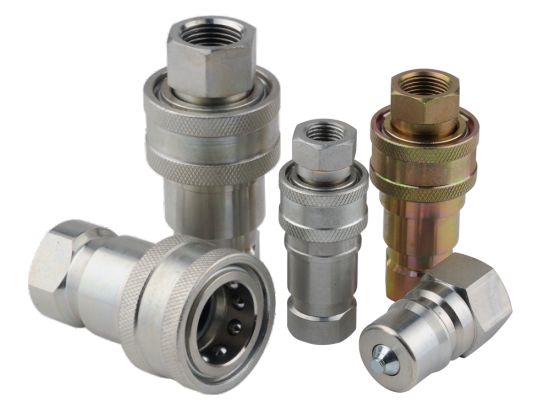

Female (Socket)
| Body Size | PARTNO. | LS | Φ D | HS | A | T |
| 1/4" | CB-S2S-10F | 50 | 26 | 19 | 13.1 | G1/4 NPT1/4 |
| 3/8" | CB-S3S-10F | 60.5 | 31.5 | 22 | 18.5 | G3/8 NPT3/8 |
| 1/2" | CB-S4S-10F | 66 | 38 | 27 | 23.8 | G1/2 NPT1/2 |
| 3/4" | CB-S6S-10F | 80 | 46 | 34 | 30.6 | G3/4 NPT3/4 |
| 1" | CB-S8S-10F | 99.5 | 54 | 41 | 36.7 | G1 NPT1 |
Male (Plug)
| Body Size | PARTNO. | LP | C | HP | A | T |
| 1/4" | CB-P2S-10F | 35.5 | 15 | 19 | 11.85 | G1/4 NPT1/4 |
| 3/8" | CB-P3S-10F | 42 | 21.5 | 22 | 17.3 | G3/8 NPT3/8 |
| 1/2" | CB-P4S-10F | 46 | 26.5 | 27 | 20.55 | G1/2 NPT1/2 |
| 3/4" | CB-P6S-10F | 54 | 28 | 34 | 29.1 | G3/4 NPT3/4 |
| 1" | CB-P8S-10F | 65.5 | 35 | 41 | 34.3 | G1 NPT1 |
