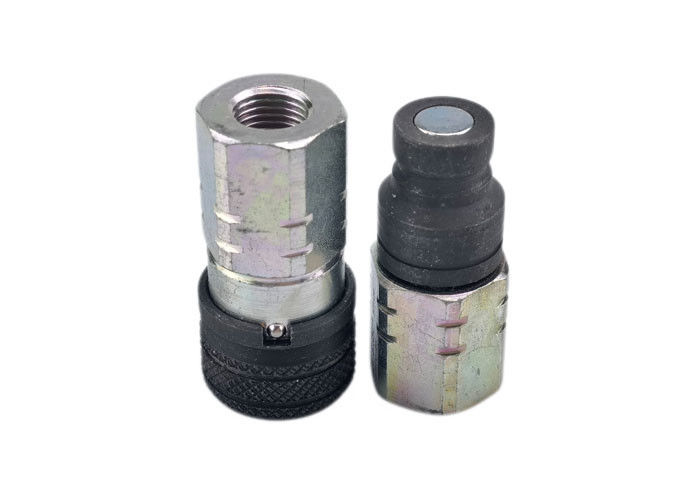

1/2“ van het het Gezichts Hydraulische Standaardstaal van ISO16028 de Vlakke Koppelingen van het de Vlaktegezicht
Eigenschappen
Band-6 de reekskoppeling is een vlakke gezichts droge onderbreking of een minimummorserij hydraulische koppeling die aan de ISO16028-norm voldoet. De lichaamsgrootte is 1/4“, 3/8“, 1/2“, 5/8“, 3/4“ en 1“.
Toepassingen
Band-6 de reeks is ideaal voor toepassingen waar de hydraulische morserij een zorg is en de uitwisselbaarheid met andere fabrikanten belangrijk is. Openbare Nut, Bouwmateriaal, Landbouwmachine, Mijnbouwmateriaal, Spoorwegonderhoud, Luchtemmerhijstoestellen, de laders van de Steunbalkjonge os
Standaardteeltmaterialen
Lichaamsgrootte | PARTNO. | Draad | A | B | HEXUITDRAAI |
1/4“ | Band-s2s-6FN | 1/4 ' ‚ | 2.32 | 1.10 | 0,87 |
3/8“ | Band-s3s-6FN | 3/8 ' ‚ | 2.87 | 1.26 | 1.18 |
3/8“ | Band-s3s-6FN | 1/2' ‚ | 2.87 | 1.26 | 1.18 |
1/2“ | Band-s4s-6FN | 1/2' ‚ | 3.31 | 1.50 | 1.42 |
1/2“ | Band-s4s-6FN | 3/4 ' ‚ | 3.31 | 1.50 | 1.42 |
5/8“ | Band-s5s-6FN | 1/2' ‚ | 3.23 | 1.65 | 1.42 |
5/8“ | Band-s5s-6FN | 3/4 ' ‚ | 3.39 | 1.65 | 1.42 |
3/4“ | Band-s6s-6FN | 3/4 ' ‚ | 3.74 | 1.89 | 1.61 |
3/4“ | Band-s6s-6FN | 1 ' ‚ | 3.86 | 1.89 | 1.61 |
1“ | Band-s8s-6FN | 11/4 ' ‚ | 4.33 | 2.17 | 2.17 |
Lichaamsgrootte | PARTNO. | Draad | C | D | HEXUITDRAAI |
1/4“ | Band-p2s-6FN | 1/4 ' ‚ | 2.05 | 0,63 | 0,87 |
3/8“ | Band-p3s-6FN | 3/8 ' ‚ | 2.52 | 0,78 | 1.18 |
3/8“ | Band-p3s-6FN | 1/2' ‚ | 2.52 | 0,78 | 1.18 |
1/2“ | Band-p4s-6FN | 1/2' ‚ | 2.91 | 0,96 | 1.42 |
1/2“ | Band-p4s-6FN | 3/4 ' ‚ | 2.95 | 0,96 | 1.42 |
5/8“ | Band-p5s-6FN | 1/2' ‚ | 2.87 | 1.06 | 1.42 |
5/8“ | Band-p5s-6FN | 3/4 ' ‚ | 2.95 | 1.06 | 1.42 |
3/4“ | Band-p6s-6FN | 3/4 ' ‚ | 3.39 | 1.18 | 1.61 |
3/4“ | Band-p6s-6FN | 1 ' ‚ | 3.39 | 1.18 | 1.61 |
1“ | Band-p8s-6FN | 11/4 ' ‚ | 3.54 | 1.42 | 2.17 |
